Creating Power BI Custom Portlets in NetSuite

I am sure that everybody appreciates NetSuite’s Dashboards and their flexibility in relation to custom reports and other business-related key performance indicators.

Sometimes however, out of the box functionality and numerous standard and custom KPI’s in NetSuite are not enough. Frequently, there is a need to source external company information and feed it directly to NetSuite’s Dashboard or perhaps create custom functionality that NetSuite does not offer out-of-the-box.

In order to bridge this gap, NetSuite gives us ‘Custom Portlets’. Custom Portlets are custom SuiteScript scripts that can be deployed directly on NetSuite’s Dashboard.

This image shows the Custom Portlets SuiteScript

There are 4 different types of custom portlet scripts:

  • List: A list of user-defined column headers and rows. (i.e.: custom Saved Search result portlet)
  • Form: A basic data entry form which when submitted can create / modify records in NetSuite,
  • HTML: An HTML-based portlet, the most flexible presentation format used to display free-form HTML (images, Flash, custom HTML).
  • Links: This default portlet consists of rows of simple formatted content (for example an RSS portlet). Any XML type of feeds could be configured via the Links portlet.

In this article, I will demonstrate how to create and deploy a Custom Portlet in NetSuite. For the purpose of this blog, I will use Power BI View.

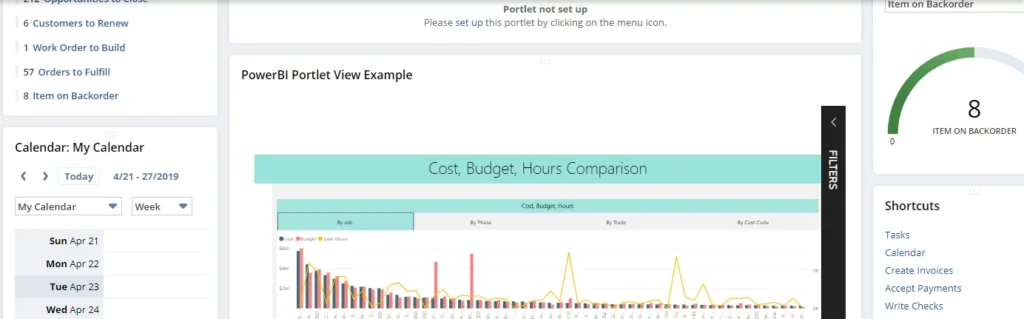

This image shows Custom Portlet in NetSuite

Important Tip: If you wish to source external content to your NetSuite Dashboard through Custom Portlets, your external webpages must be secure and their url should start with ‘https://’

Step 1: Setting up the SuiteScript environment

A. Environment Setup

In order to write SuiteScript code, you will need the following:

  1. We recommend that you install SuiteCloud IDE. The following SuiteAnswer links will help you with the setup and configurations*:
  2. Generate secure URL from your Power Bi online app

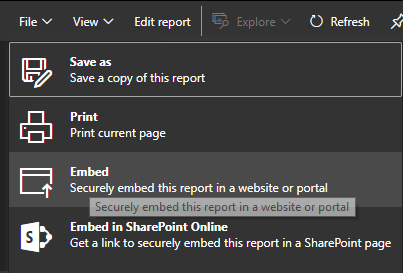

This image shows Power BI report

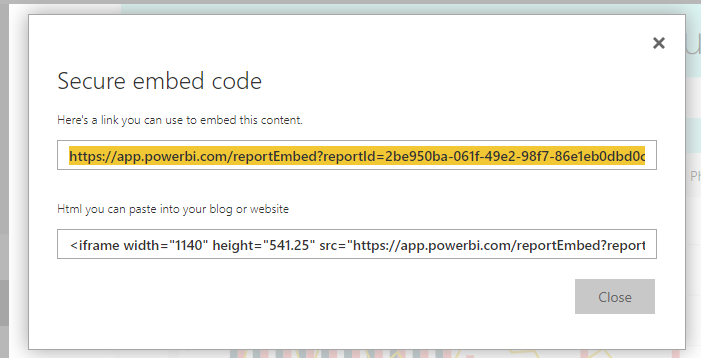

this image shows Secure embed code

    • Copy the highlighted link and save it somewhere on your computer.
  1. Administrator access to your NetSuite Instance.

Step 2: Create and deploy Power BI Portlet Example

We are almost there. The last piece of the puzzle will be to create a Custom Portlet that will source and display Power Bi view on NetSuite’s Dashboard.

  1. Create Portlet SuiteScript file

  • You will create SuiteScript file in NetSuite’s IDE
  • You script type will be of type: ‘Portlet’

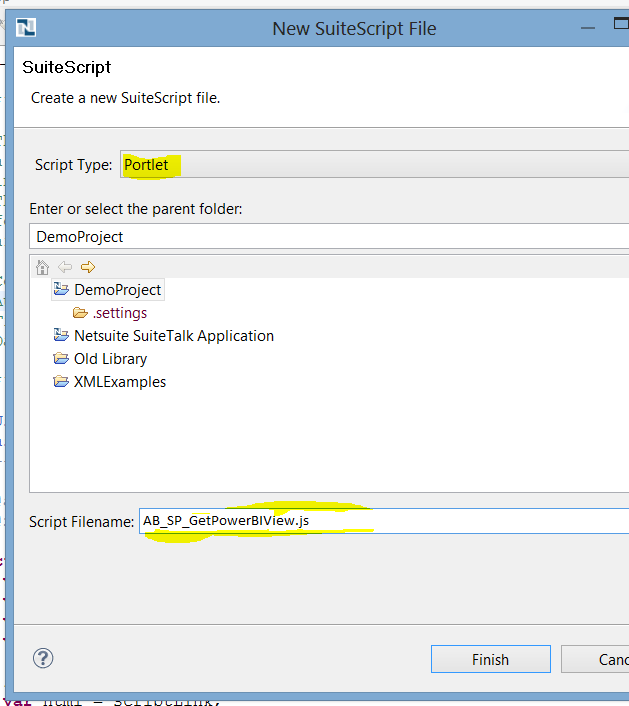

this image show's SuiteScript file in NetSuite's IDE

B. Create SuiteScript Code

Your code can be very simple. In my example, I created an iFrame that will source the URL generated in Power BI.

 * @NApiVersion 2.x
 * @NScriptType Portlet
 * @NModuleScope SameAccount
 * @param {portlet} portlet
function() {
     * Renders Power BI Suitelet.
     * @param {Object} params
     * @param {Portlet} params.portlet – The portlet object used for rendering
     * @param {number} params.column – Specifies whether portlet is placed in left (1), center (2) or right (3) column of the dashboard
     * @param {string} params.entity – (For custom portlets only) references the customer ID for the selected customer
     * @Since 2015.2
    function renderView(params) {
        params.portlet.title = ‘Power BI Portlet View Example’;
        var content = ‘<iframe width=”840″ height=”640″ frameborder=”0″ src=”
        params.portlet.html = content;
    }     return {
        render: renderView

C. Deploy your Custom Portlet Script

  • Create a ScuiteScript Record
  • Go to Customization >> Scripting >> Scripts >> New

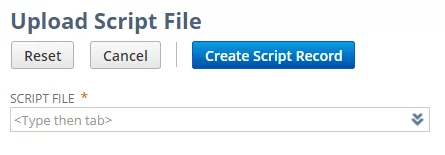

this image shows ScuiteScript Record

  • Hover over the drop-down menu, you will notice the ‘+’ icon

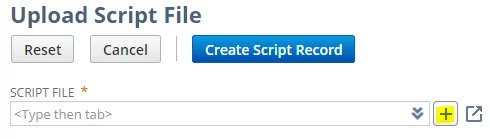

this image shows script file

  • On the next screen, please select your file by clicking on ‘Choose File’ button. Locate the script file on your machine, click open.

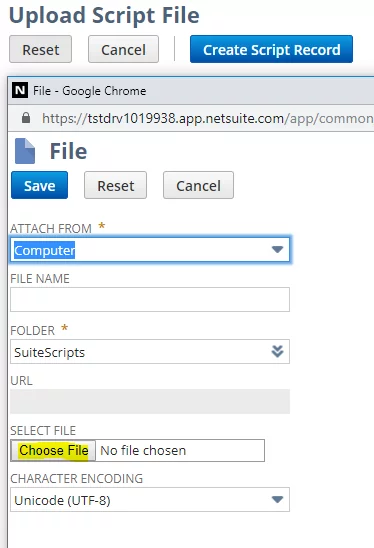

this image shows choose file

  • Click [Save] on the next screen.

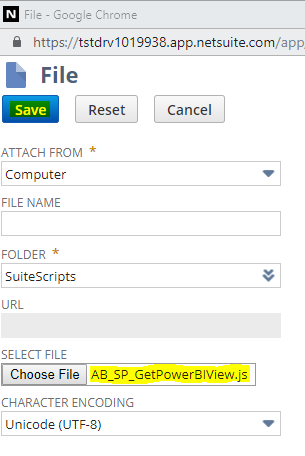

this image shows save file

  • Based on the file uploaded, on the next screen, you can populate the mandatory fields as illustrated below:

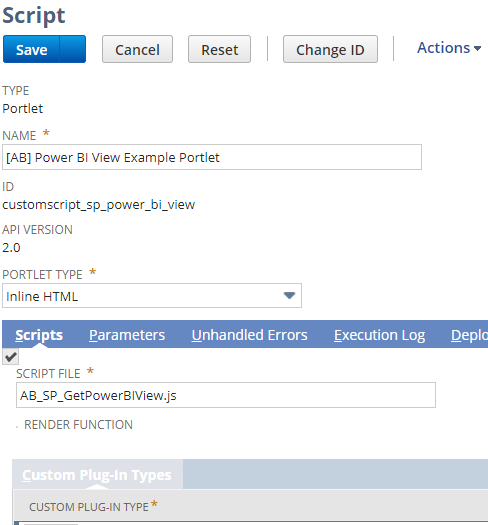

this image shows script power bi example

  • On the ‘New Script’ page, complete the Mandatory fields:

Important Fields:

  1. Portlet Type: In this field, you will select Inline HTML as your content will be of type ‘HTML’. If you are interested in learning more about different portlet types, please click here*.


  1. Name: For consistency ‘Name’ field should match the file name you created in Step 2 > B (you do not need to add ‘.js’ at the end of your name)
  2. ID: Best practice is to write the script id in the following manner:
    ‘_ab_sp_power_bi_view’ (all lower case).
    Note: When you save the script record, NetSuite will add the ‘customscript’ prefix to the id (i.e.: ‘customscript_ab_sp_power_bi_view’).
  3. Script File: This field refers to the file you created in Step 3 > a.
  4. [Save] your script record.

D. Configure your Portlet on NetSuite’s Dashboard

  • We are almost done! In your NetSuite UI, click on Home tab, this will bring you to NetSuite’s main dashboard.

this image shows personalized dashboard link

  • In the top right of your screen click on Personalize Dashboard Link.
  • A slider will open-up below the link that you have clicked.
  • Find the ‘Custom Portlet’ icon in the slider and click on it. This will add the portlet to your Dashboard.

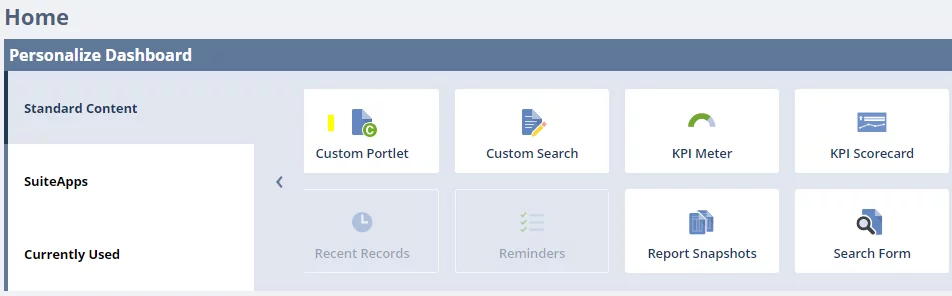

This image shows Custom Portlet

this image shows custom content

  • Hover over the top right corner of the portlet and click on ‘set up’.
  • On the next pop-up pick your Portlet script in the ‘Source’ field and [Save].

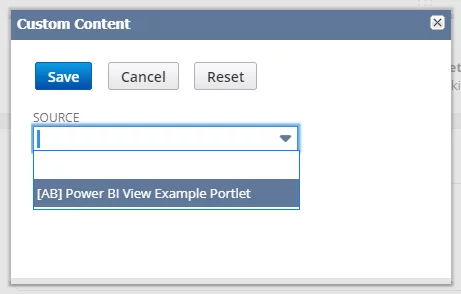

This image shows custom content source

  • You are done, congratulations!

this image shows power BI portlet view example

There are 3 other type of custom portlets that you can build and show on your dashboard. We will write about these in our future blogs. Should you have any questions or if any of the steps are not clear to you, do not hesitate to contact us.

Good luck (Suite)Scripting!

4 thoughts on “Creating Power BI Custom Portlets in NetSuite”

  1. I would recommend putting the .js at the end of the file name, since my PowerBI portlet ended up displaying an error without it.

    Also, I found that it didn’t show up in the list of custom portlets unless I actually deployed the script.

    Finally, the part to replace in the script is:

    Replace this text with your own copy and paste.

  2. This looks like a great solution. I’ve been playing around with the script and it works as designed. I’d really like to pass the Customer ID as part of the PowerBI filter in the URL. Any idea how to include the param.entity value? I have this working with our Table/Field Name if I hard code it in the URL such as: &filter=Account/NETSUITE_CUST_INT_ID eq 187069.

    Can I replace 187069 with the dynamic value? Thanks !
