How to Create your first Dashboard within Dynamics 365

Learn how to create a Dynamics 365 Dashboard for a quick visual representation to see your data that matters to you the most. It provides real-time insight and helps you identify items that need attention.

Dashboards are information management tools that enable users to visually track, evaluate, and view key performance indicators (KPI). It is an easy and simple way to access data in either a view form or a chart that you want to see daily from a single point of access.

You can create dashboard systems for your business or your personal use to enjoy a highly visual, flexible, and intuitive overview of your affairs. Whether to monitor your daily work items, teams, or system functionality, dashboards are a one-stop-shop to review data at-a-glance.

In this article, I will demonstrate how you can create a Personal Dashboard so that you can focus on what is important to you.

Learn more about Dynamics 365 Services!

Learn More


First, let’s get you to the Dashboard Area!

How do I get to the Dashboard?

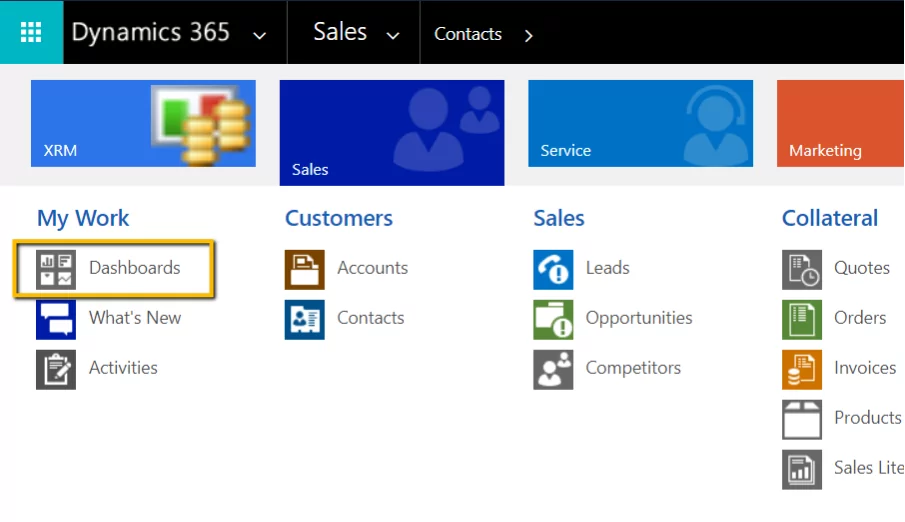

  1. Click on Sales and select Dashboards.

select Dashboards

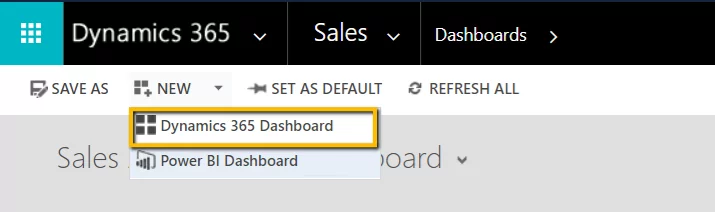

  1. Head to the Navigation Bar and click on New and select Dynamics 365 Dashboard.

Dynamics 365 Dashboard

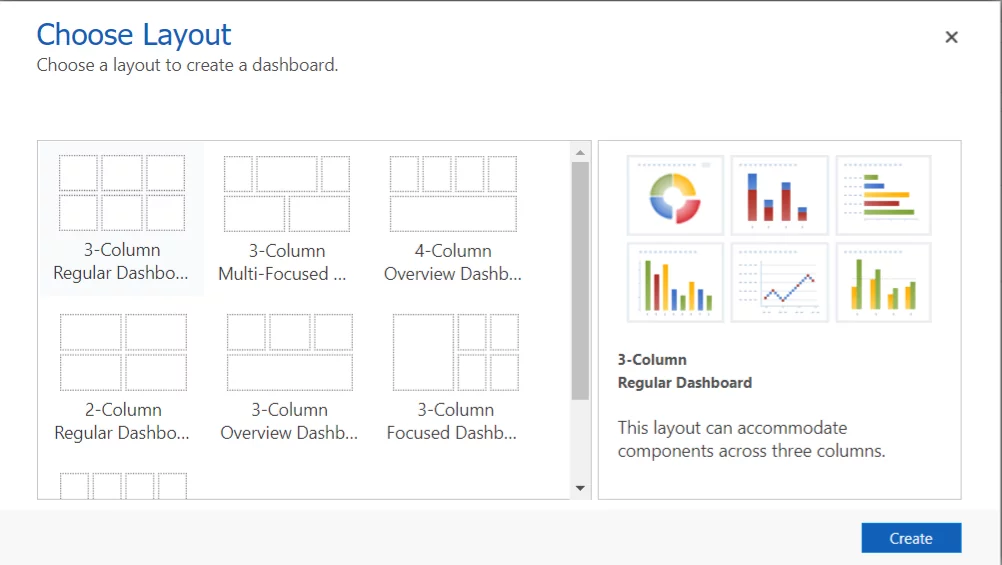

Choose Component Layout:

  1. Select a layout and click create. The layout you choose is not permanent. You will be able to modify the elements later. For this example, we will go with the 2-Column Regular Dashboard.

Component Layout

  1. Within the Component, you can add a Chart, List view, Relationship Assistance, Iframe, Web Resources, Power BI, and Organizational Insight.

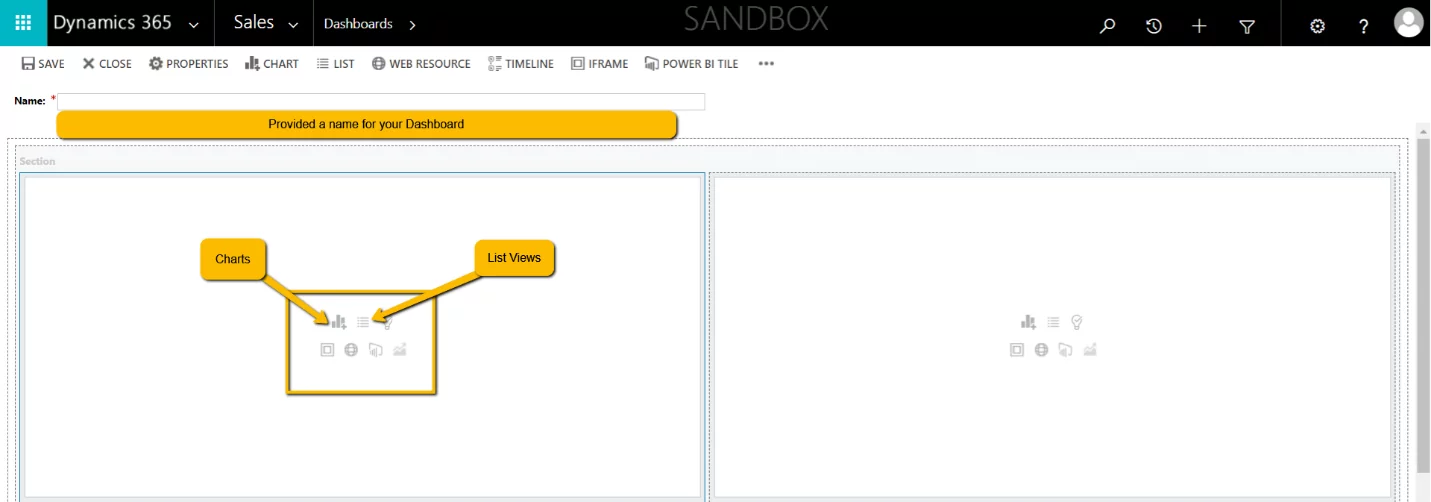

  2. For now, we will just focus on adding Charts and List views. Click on the Charts icon, and do not forget to provide a name for your Dashboard.

Charts and List views

Pick the CRM Record Type of your choosing:

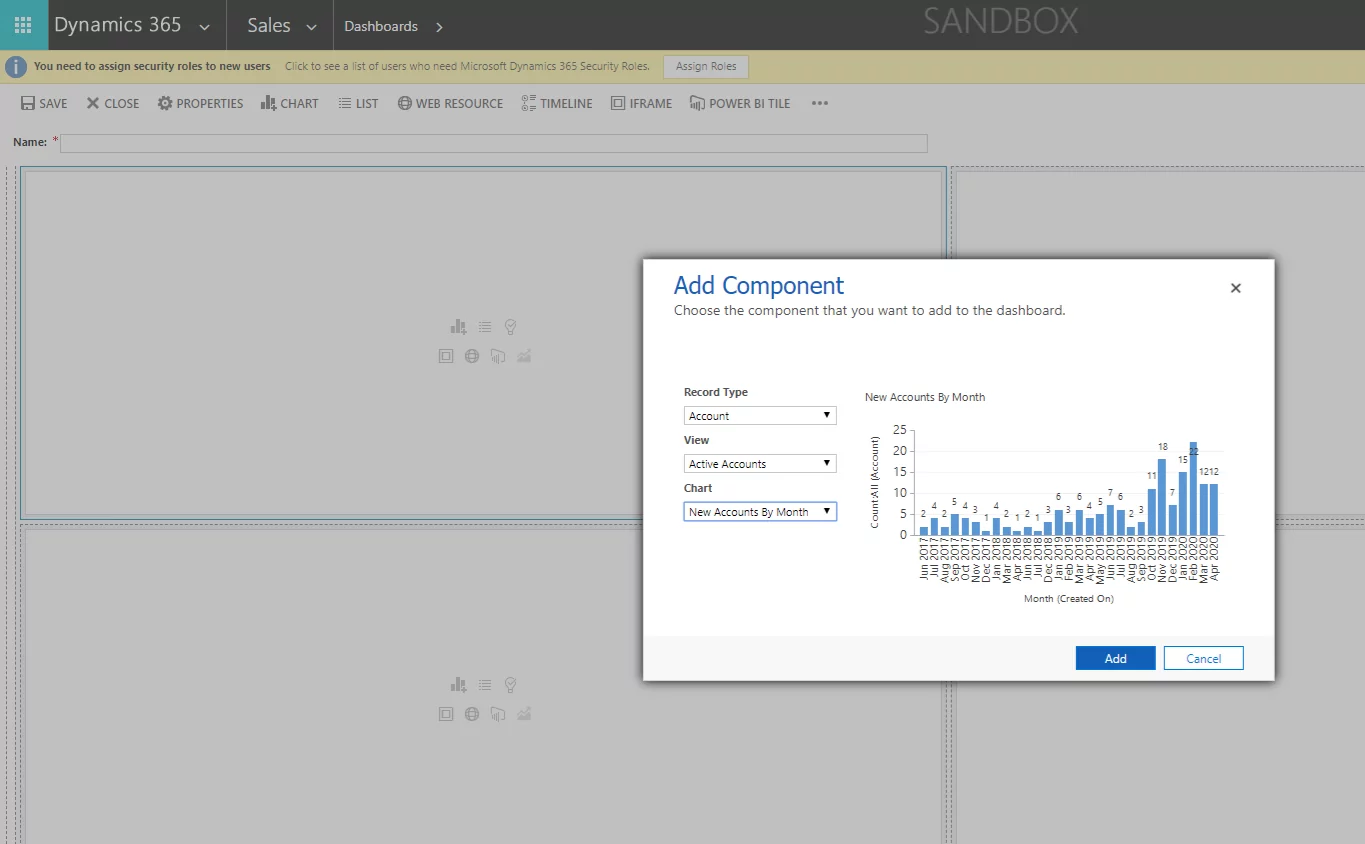

  1. Select the Record Type, View, and Chart you would like to display.

CRM Record

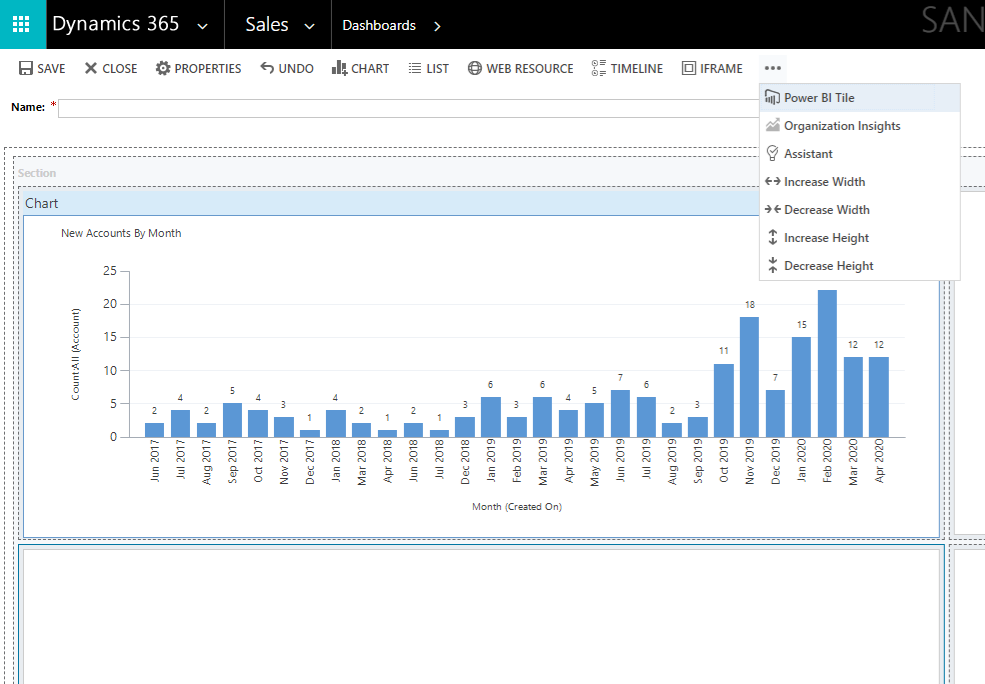

  1. You can increase/decrease the width or height of the section by clicking the section and selecting the ellipses in the navigation bar.

navigation bar

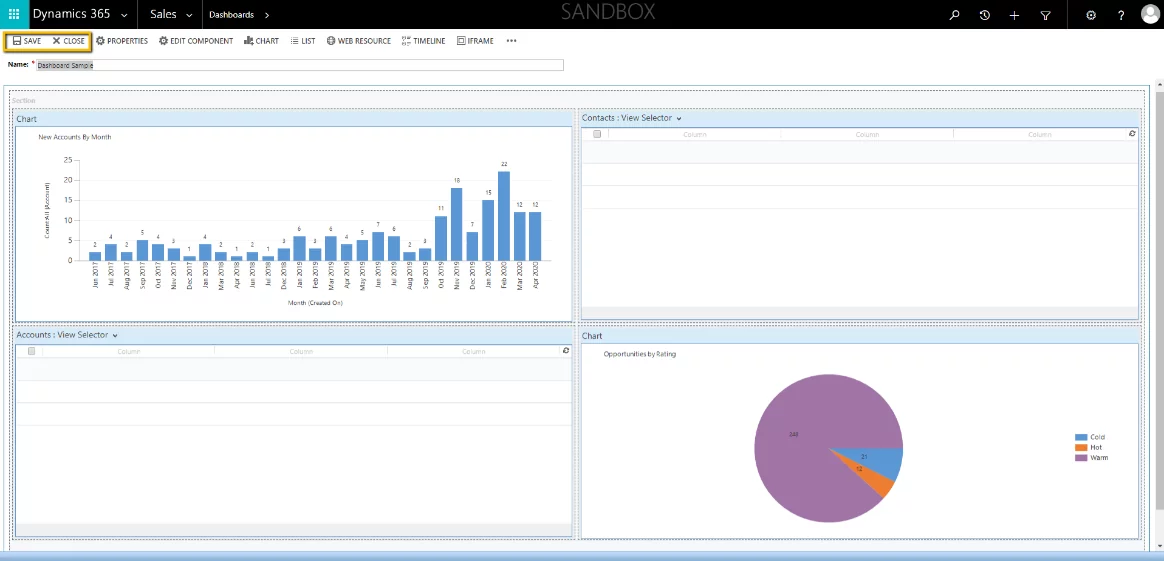

  1. Once you have finished all sections, save and close your Dashboard for review.

Dashboard for review

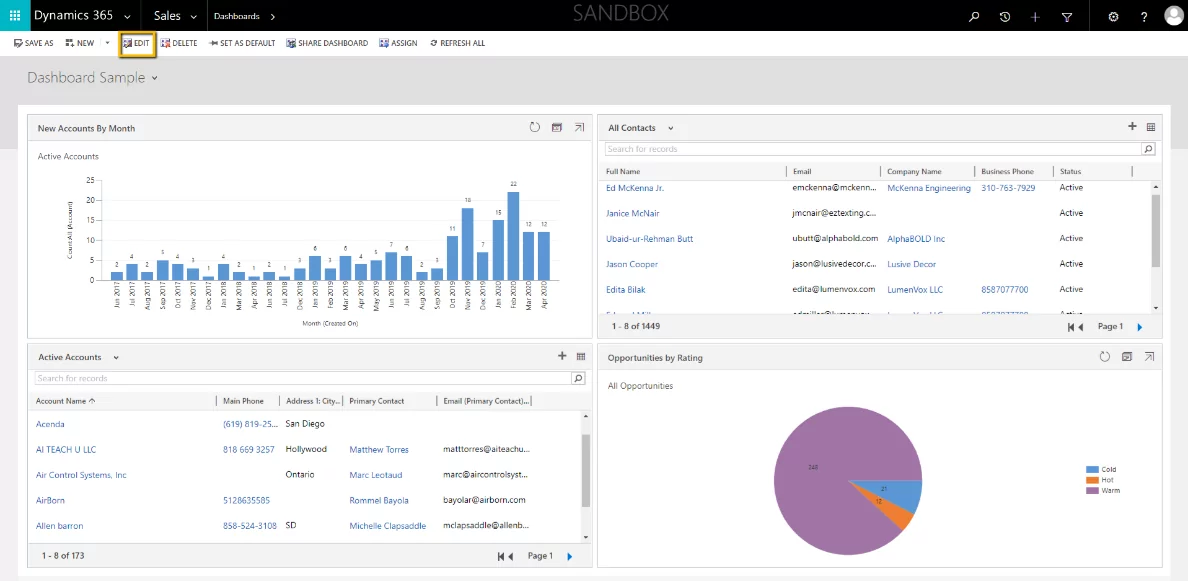

Your Dashboard is now ready to be used. If you need to make adjustments, you can use the Edit button to make any additional changes.

dashboard additional changes

There you go, folks! Here is how you can create a dashboard for personal use in just eight steps. If you have any questions or would like more information, please reach out to our AlphaBOLD team using the comment box below. We will get back to you ASAP.

If you have any question or queries, do not hesitate to reach out to us

Happy Dashboarding!
